Solution For Tapping On Titanium Alloys by Hand Operation: Effortless Tapping with GSR's Silver Series Hand Taps
Stop struggling with broken taps and seized threads. Discover the engineered solution for high-performance threading in titanium and superalloys.
Have you ever faced the immense frustration of tapping a titanium alloy workpiece? The excessive resistance, the screech of high torque, the dreaded sight of a broken tap—leading to scrapped parts, costly downtime, and plummeting efficiency.
There is a better way. GSR's Silver Series Hand Taps, crafted from high-vanadium cobalt high-speed steel (HSS-E V3), are specifically engineered to solve this exact problem, transforming your toughest threading challenges into smooth, reliable operations
Why Titanium Alloy is a Machining Challenge
Titanium's reputation for being difficult is well-earned. Its unique combination of properties creates a perfect storm for tool failure:
1. Low Thermal Conductivity: Heat doesn't dissipate. Instead, it concentrates in the cutting zone and the tool edge, leading to extremely high temperatures that rapidly soften and degrade the tap.
2. Intense Work-Hardening: Titanium readily forms a hard, brittle surface layer when cut, accelerating tool wear and compromising thread quality.
3. Low Elastic Modulus: This "gumminess" causes the material to deflect under cutting forces, inducing vibration, reducing accuracy, and increasing tool stress.
4. Chip Adhesion: The chips tend to weld onto the cutting edge (built-up edge), which leads to poor surface finish and subsequent tap failure.
The Engineered Solution: GSR Silver Series Hand Taps
Our product isn't just another tap; it's a precision system designed to overcome these challenges.

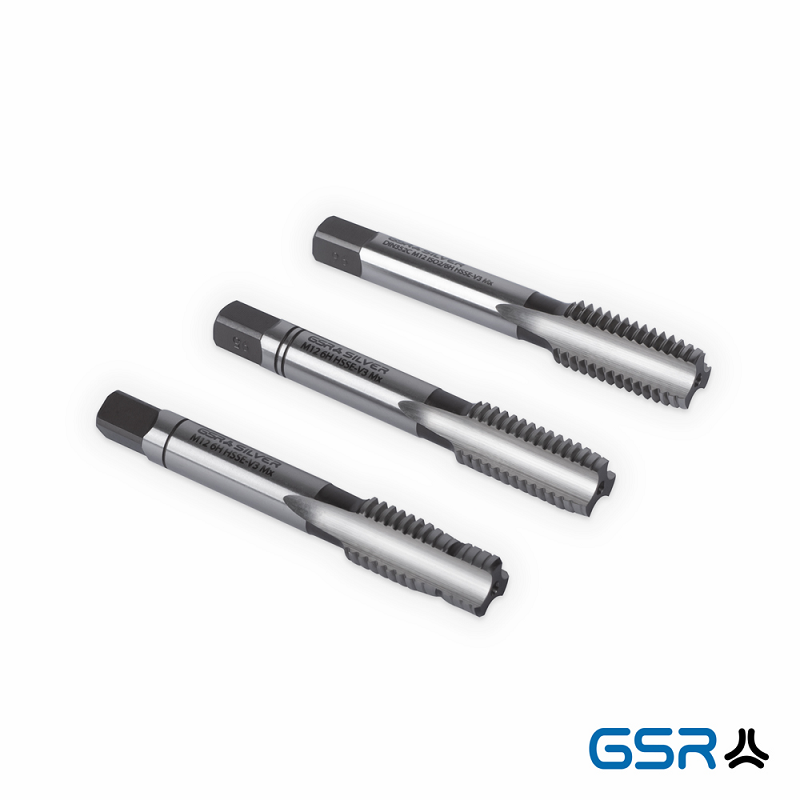

Product: GSR SILVER 3-Piece Hand Tap Set (HSS-E V3, DIN 352 with Pilot), for Titanium Alloys & High-Strength Steels.
Ideal for: Automotive, aerospace, mold manufacturing, and general machining of titanium, heat-resistant, and stainless steels (tensile strengths up to 1200 N/mm²).
How We Deliver Unmatched Performance
| Feature & Engineering | Your Direct Benefit |
| Premium HSS-E V3 Steel (Böhler, Austria): 3% Vanadium content dramatically increases wear resistance and hot hardness. | 50% Longer Tool Life:Reduced tool consumption and lower cost-per-thread. |
| Optimized Geometry:A large relief angle and negative rake angle are engineered for superalloys, reducing cutting forces and preventing seizing. | Smooth, Reliable Operation:Eliminates chatter and breakage, even in blind holes. |

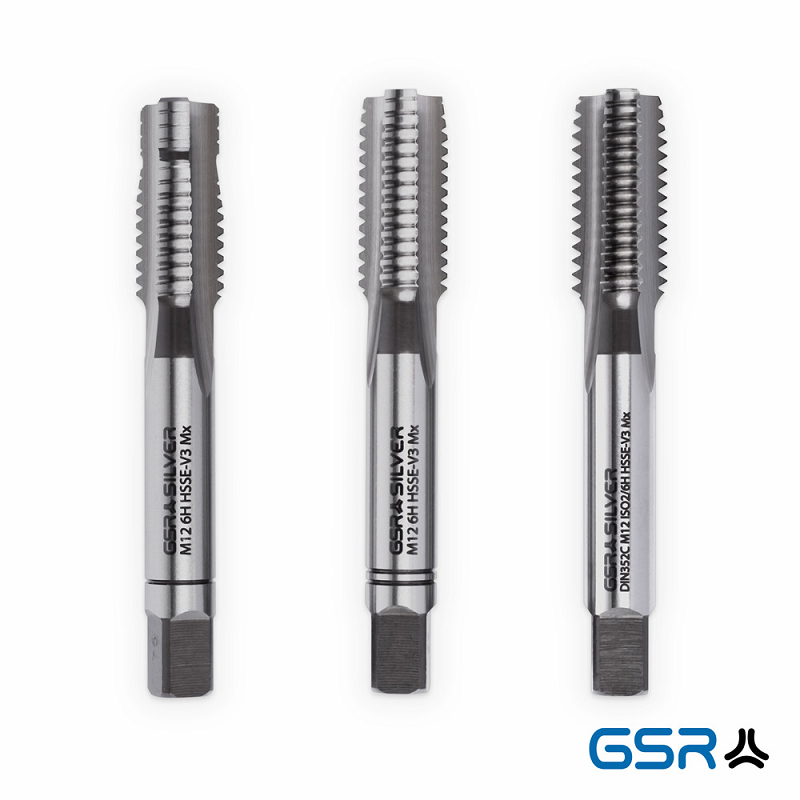

| Complete 3-Tap Set: • Taper Tap (1 ring): Long chamfer with Pilot for easy starting. • Plug Tap (2 rings): Medium chamfer to cut past the pilot in blind holes. • Bottoming Tap: Short chamfer for finishing to full depth. | Flawless Threads in Any Hole:Achieve perfect, high-quality threads in both through and blind holes. |
| CBN Grinding & Polished Flutes:Ultra-precise manufacturing ensures perfect thread form and superior chip evacuation. | Enhanced Thread Quality & Yield:Minimizes burrs and produces clean, precise threads every time. |
While our taps may have a slightly higher initial cost, their exceptional durability and reliability significantly reduce your total production costs by eliminating downtime, scrapped parts, and constant tool changes.
Ready to Experience the Difference?
Stop letting titanium alloys dictate your productivity.
→ Request Your Sample & Technical Consultation
Our experts are ready to provide a bespoke processing solution for your specific application.
→ Download the Complete Technical Datasheet
Get all specifications and performance data from our official website.
