Die Stock Manufacturer 25x9mm 30x11mm

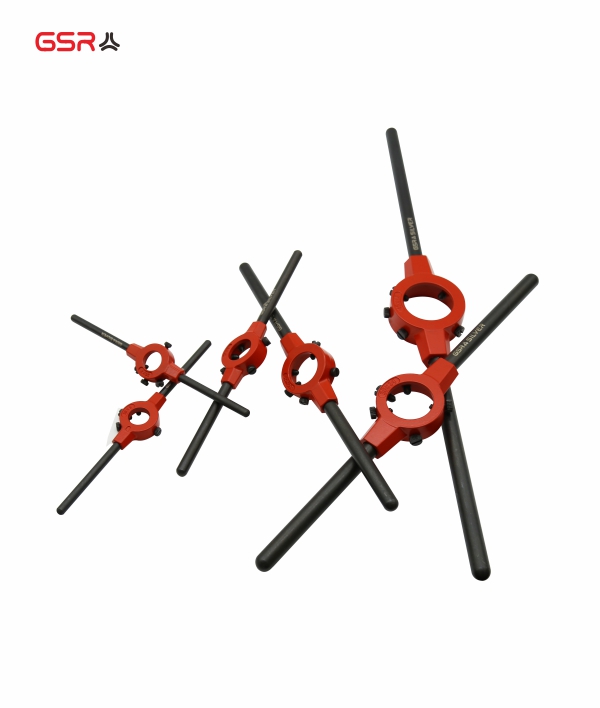

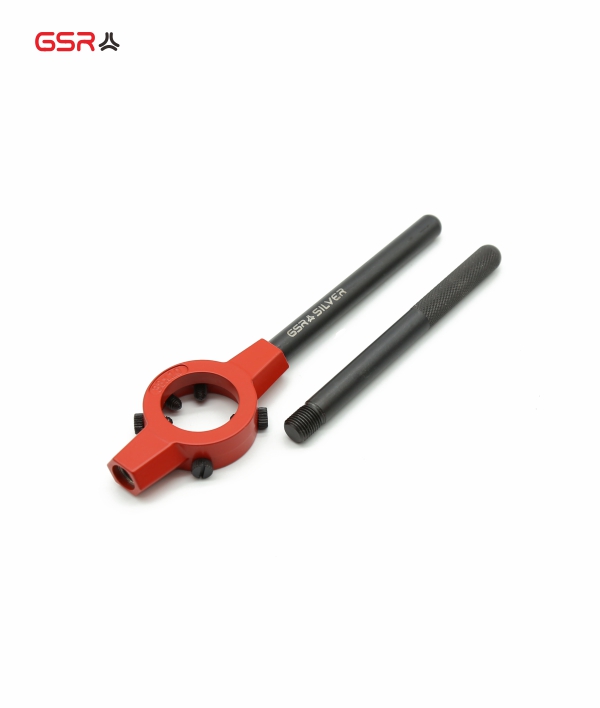

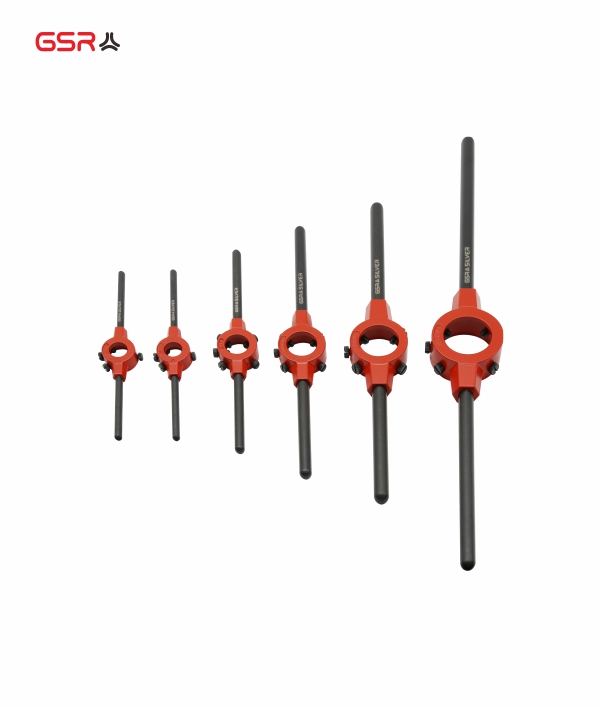

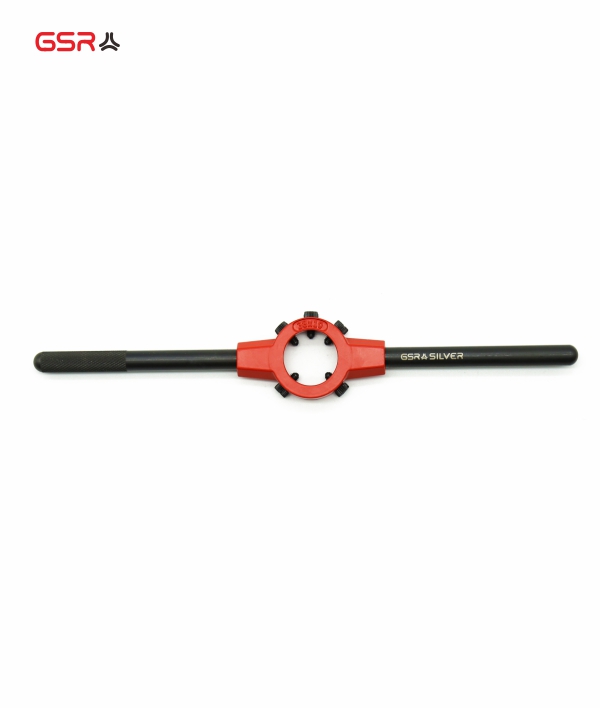

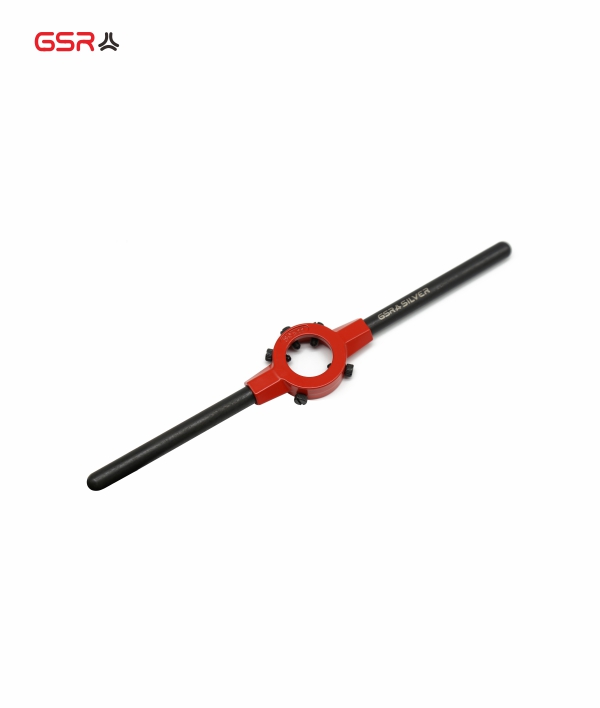

GSR ROUND DIE HOLDER MADE OF DIE-CAST ZINC

The design of the GSR round die holder was also completely revised. Not only is the body much more resilient than the predecessor's ones, the powder coating is also environ-mentally friendly. It is applied in a state-of-the-art coating process in a closed-circulation system to the high-quality die-cast zinc.Round die holders for round dies with an outer diameter of d=16mm and d=20mm have four locking screws. The bigger die holders have fi ve chamfered  locking screws.


Technical Data:

StandardDIN225
MaterialZinc
SurfacePowder Coating
Body ColorCustomized
HandleC45 Black Finished


Round Die Stock


Die Stock.pdf
