The Difference for NPT and BSPT Threads

NPT vs. BSPT Pipe Threads – What You Need to Know

On the surface, NPT and BSPT look interchangeable. Both are tapered, both seal by thread interference, and both are used in fluid power and piping systems. Yet this superficial resemblance is the root of countless field failures – leaks, loose joints, and damaged fittings. To distinguish them correctly, you must examine the flank angle, tooth profile, and pitch – not just the nominal size.

Defining NPT and BSPT

· NPT (National Pipe Taper) is the American standard (ASME B1.20.1) with a 60° flank angle and a flat crest.

· BSPT (British Standard Pipe Taper) belongs to the Whitworth family, featuring a 55° flank angle and rounded crests/roots.

Both are tapered, but their geometry follows entirely different design philosophies.

Why Are They So Easily Confused?

Because they share the same tapered form and similar diameter callouts (e.g., 1/4", 1/2"), many assume they can be used together. In practice, a male NPT can sometimes start into a female BSPT – but only for a couple of threads. This false engagement encourages further tightening, which deforms the flanks, creates high hoop stresses, and eventually leads to seepage or rupture. This trap is especially common in emergency repairs, where speed overrides verification.

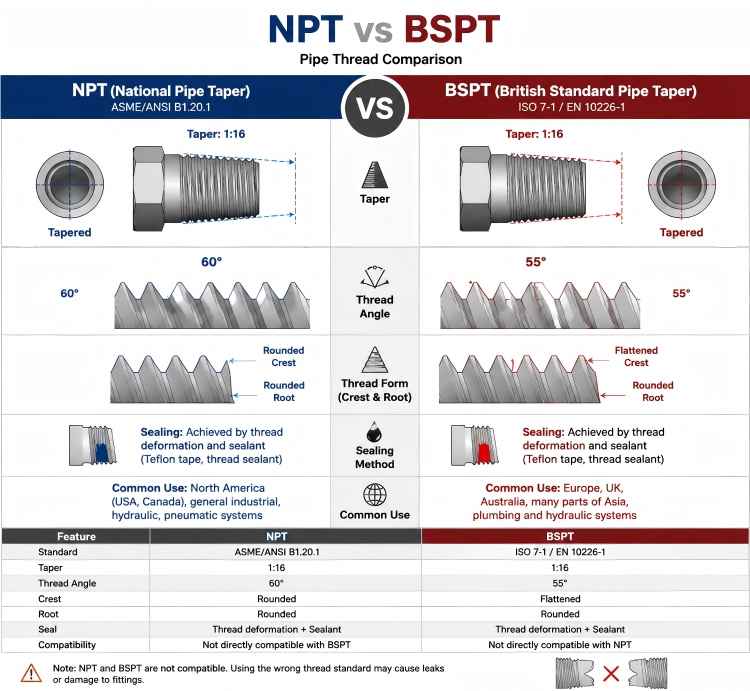

Side-by-Side Technical Differences (No Table)

The main distinctions between NPT and BSPT are:

· Flank angle: NPT uses 60°; BSPT uses 55°.

· Thread form: NPT has a truncated V-shape with flat crests; BSPT follows the Whitworth profile with rounded crests and roots.

· Pitch (TPI): For the same nominal size, pitches often differ. For example, 1/8" – NPT has 27 TPI, BSPT has 28 TPI; 1/4" – NPT 18 TPI, BSPT 19 TPI; 1" – NPT 11.5 TPI, BSPT 11 TPI. Even these small pitch mismatches accumulate over the engaged length, preventing full flank contact.

BSPT vs. BSPP (G Thread) – Not the Same

Many confuse BSPT with BSPP (or G thread). BSPT is tapered and seals by metaltometal wedging. BSPP is parallel and relies on an elastomeric seal (Oring or gasket). Although both originate from British standards, their sealing mechanisms and machining requirements are distinct.

The Hidden Cost of Mixing Them

Attempting to join an NPT male with a BSPT female (or vice versa) causes:

· Partial flank contact, leading to point loading;

· Excessive radial expansion, cracking thinwalled fittings;

· Rapid loosening under thermal cycling or vibration.

The golden rule: Never crossmate – design and tool selection must respect the original standard.

How to Identify Correctly on the Shop Floor (Four Steps)

1. Visual inspection – rounded crests suggest BSPT; flat crests point to NPT.

2. Angle measurement – use a thread gauge or optical comparator; 60° = NPT, 55° = BSPT.

3. Pitch verification – consult the TPI values above; even a 0.5 TPI mismatch is a red flag.

4. Check documentation – drawings or part numbers usually state the standard.

Choose the Right Tap for the Job

· For NPT internal threads → use an NPT tap.

· For BSPT internal threads → use an Rc (BSPT) tap.

· External threads require matching dies or threadrolling heads.

Using the wrong tap – even if it seems to fit initially – will produce nonconforming threads that fail inspection or leak under pressure.

GSR – Your One-Stop Source for Both Standards

GSR stocks a broad range of taps and dies for both NPT and Rc (BSPT) tapered threads. Many popular sizes ship directly from stock, eliminating leadtime delays. For uncommon pitches or specialty lengths, GSR offers rapid custom manufacturing – ensuring you always have the exact tool that matches your specified thread system.

Final Takeaway

NPT and BSPT are two independent, noninterchangeable tapered pipe thread systems. They look alike but differ fundamentally in flank angle, profile, and often pitch. To guarantee leakfree, durable joints, always verify the standard, select the corresponding GSR tool, and validate with proper gauges before assembly.

Quick FAQs

Q: Can NPT and BSPT be used together?
A: No – different angles and profiles prevent proper sealing and structural integrity.

Q: How can I tell them apart quickly?
A: Use a pitch gauge and flankangle gauge; 60° = NPT, 55° = BSPT.

Q: Is BSPT the same as G thread?
A: No – BSPT is tapered, while G (BSPP) is straight.

Q: Does GSR offer both NPT and BSPT tools?
A: Yes – GSR provides full ranges of taps and dies for both systems, including custom orders.
