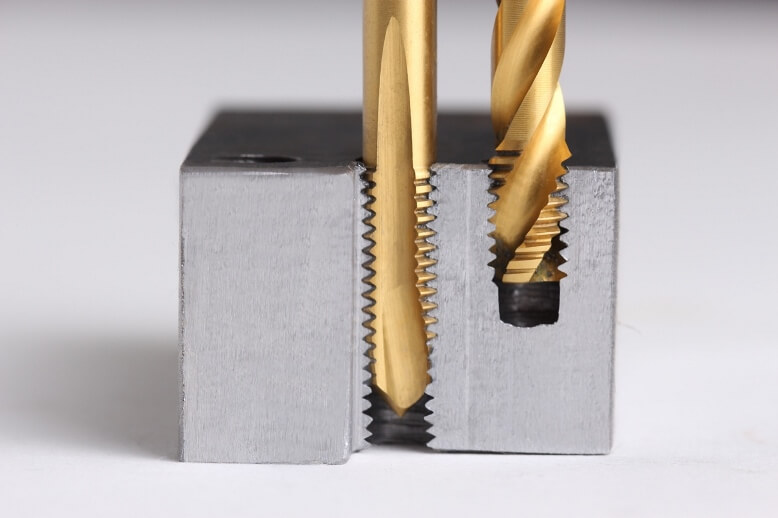

Comparison of Spiral flute Taps and Spiral point Taps

In the field of high-precision thread machining, the selection of taps is crucial for ensuring thread quality. Spiral flute taps and Spiral point taps are two common types, each with distinct characteristics in function and application. Understanding their differences enables more informed decisions across various machining environments.

I. Definitions

· Spiral point Tap (Also called Gun Tap): Features a spiral (or angled) point which helps push chips forward during cutting. This makes it particularly suitable for through-hole threading.

· Spiral flute Tap: The most common type of tap, featuring Spiral points without a spiral angle. It is generally more applicable for blind-hole threading.

II. Structural Characteristics

1. Spiral flute Tap: Its flutes are spiraled, facilitating smooth chip ejection, reducing cutting resistance, and minimizing damage to the thread surface.

2. Spiral point Tap: This tap has a relatively simple structure. Chips are primarily pushed forward, making it better suited for through-hole applications and often resulting in higher processing efficiency.

III. Scope of Application

1. Spiral flute Tap: Due to its excellent chip evacuation, it is especially well-suited for blind-hole threading. It maintains good machining quality even with materials like non-ferrous metals or plastics, which are prone to producing stringy chips.

2. Spiral point Tap: Typically used for through-hole or short-hole threading. It ensures faster processing speeds, particularly when machining soft materials or where thread depth is not excessive.

IV. Application in High-Precision Thread Machining

1. In industries requiring high-precision threads, such as precision machinery or aerospace, the Spiral flute Tap is often the preferred choice due to its superior chip ejection and vibration control capabilities.

2. For high-volume production of standard threads, especially where rapid completion is essential, the Spiral point Tap is more suitable, leveraging its productivity advantages.

Frequently Asked Questions (Q&A)

Q: What is the difference in tool life between Spiral flute taps and Spiral point taps?

A: Spiral flute taps generally offer more stable machining due to their design and chip evacuation advantages, which can extend tool life to some extent. Spiral point taps, with their simpler structure, may sometimes experience reduced lifespan because chips are more difficult to evacuate effectively.

Q: Is there a significant price difference between the two?

A: Generally, yes. Spiral flute taps are typically more expensive due to their more complex structure and higher manufacturing costs. Spiral point taps, being simpler to produce, are usually more economical.

Summary

In conclusion, both Spiral flute taps and Spiral point taps have their own advantages and disadvantages. The choice between them should be based on specific machining requirements and conditions. To achieve optimal results in high-precision thread machining, it is essential to thoroughly understand the material, equipment, and process flow, and select the most compatible tool to ensure both thread quality and production efficiency.
