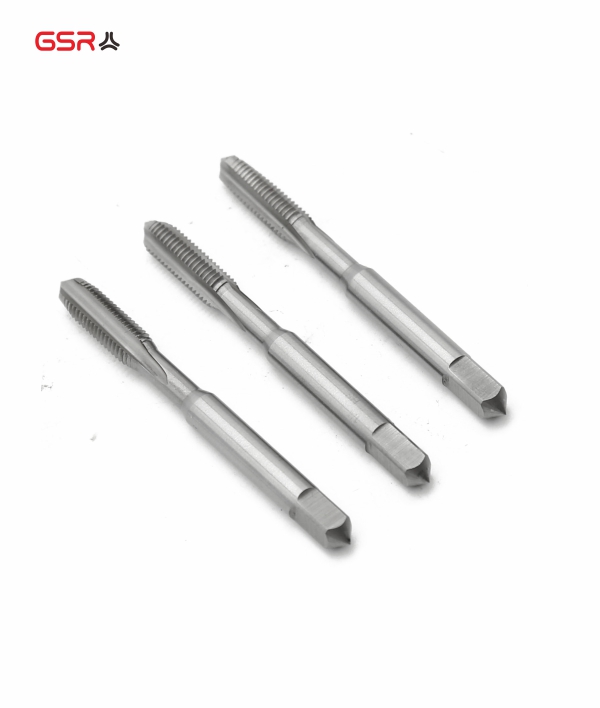

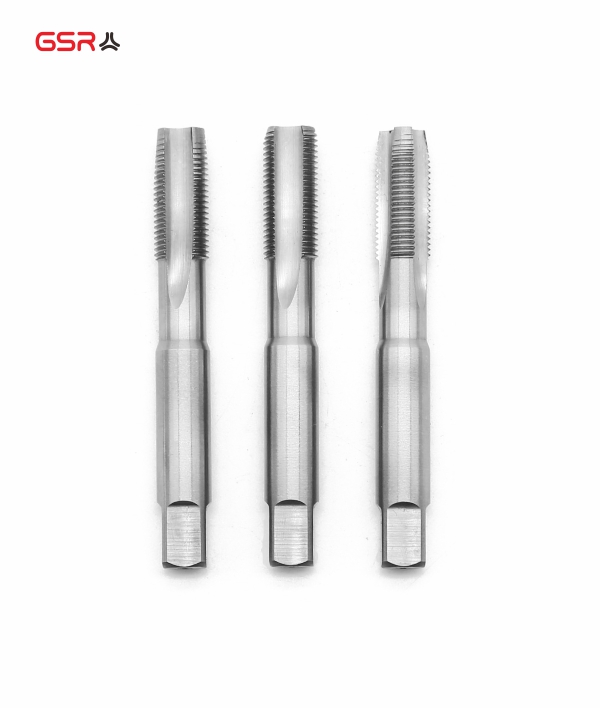

ISO529 HSSG Hand Screw Machine Taps

ISO 529:2017 specifies the general dimensions of short machine taps and hand taps. These dimensions, established as functions of the thread diameter and pitch, are the following:



- length of thread (maximum);

- overall length;

- shank diameter and dimensions of the driving square;

- dimensions of the connecting portion between the shank and threaded part.



ISO 529:2017 is applicable to taps intended for cutting the following threads:



a) ISO metric threads:



- coarse pitch;

- fine pitch;

b) ISO inch threads:



- "Unified Coarse" series (UNC) and "Unified Fine" series (UNF);

c) Inch threads, non-recommended:



- "British Standard Whitworth" (BSW) and "British Standard Fine" (BSF);

- "British Association" (BA).
