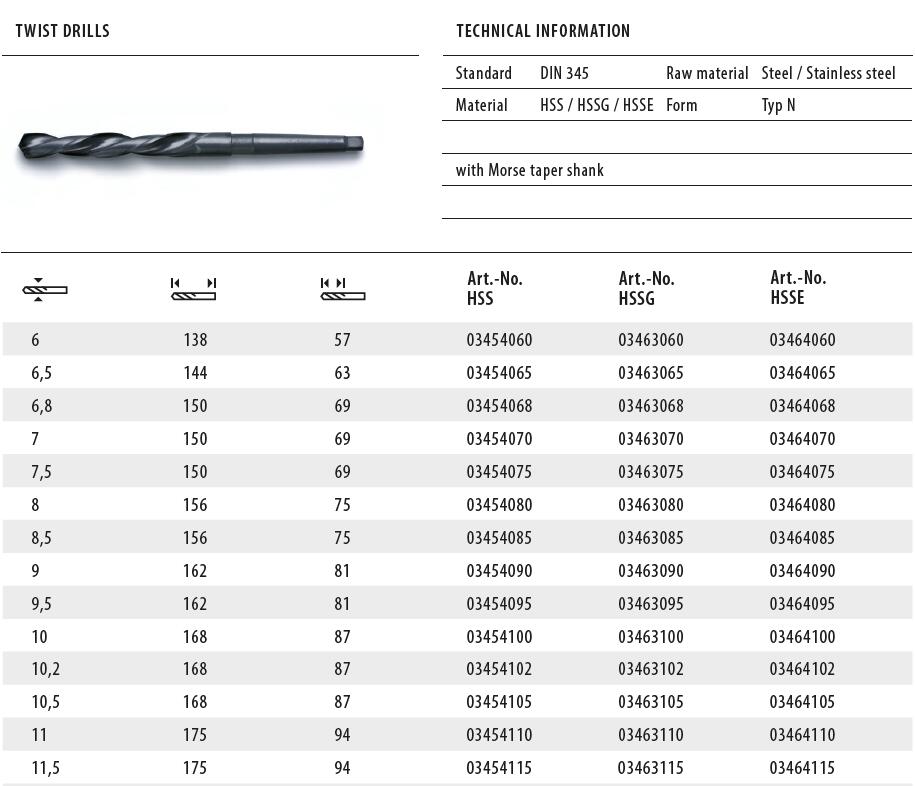

HSS Steam Oxide 118° Taper Shank Drill Jobber DIN 345

Technical data

– Standard: DIN 345

– Material: HSS, HSS M2, M35

– Process: Rolled, Fully ground

– Surface: black, white, Titanium coated, Amber

– Normal Point

– Point angle: 118°

– Point cut: type N

– Cutting Direction: right-hand cut

– Morse Taper shank

– Tolerance: h8

– Helix angle: 20-30°

Applications

– materials up to 900N/mm²

– alloyed and not alloyed steels, castings

– sintered metals, wood, plastics

– graphite, bronze, brass
