Die Guide for External Thread Cutting

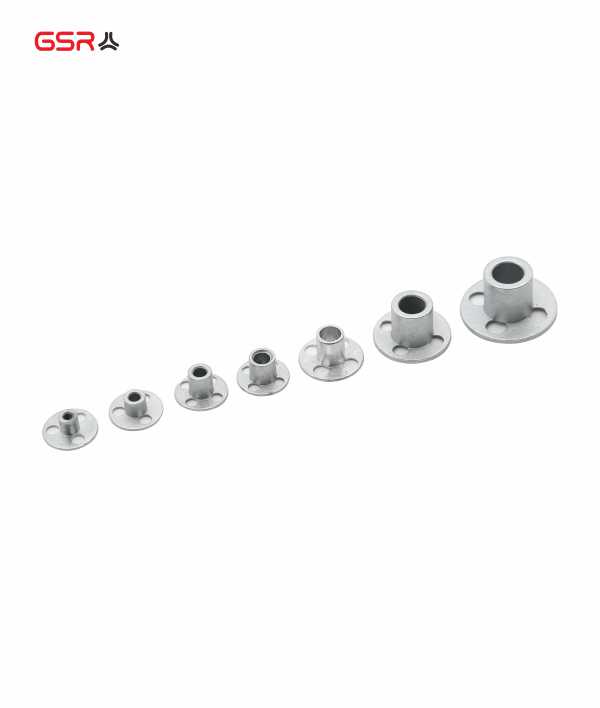

ROUND DIE GUIDES ACCORDING TO DIN

The GSR round die guides enable the perpendicular first cut with round dies according to DIN. This increases the process reliability and prevents tilting of the round die and thus a waste. The GSR round die guides are made of high-quality die-cast zinc.


Technical Data:

MaterialZinc
SizeM3-12


Die Guide for External Thread Cutting


ROUND DIE GUIDES ACCORDING TO FACTORY STANDARD

The GSR round die guides enable the perpendicular first cut with round dies according to factory standard 25x9 mm. This increases the process reliability and prevents tilting of the round die and thus a waste. The GSR round die guides are made of high-quality die-cast zinc. As these guides are made according to factory standard, they are very well suited to be used with the pilot guidance for the GSR round die holder.


Technical Data:

MaterialZinc
SizeM3-1225x9mm outer diameter


Die Guide for External Thread Cutting


Die guide.pdf
