Coating Machine Tap Stainless Steel Through and Blind Hole M3-12
High Performance Machine Taps for Professional Threading Applications
Our TiCN coated DIN 371 and DIN 376 machine taps are manufactured from premium HSSE (High Speed Steel with Cobalt) and enhanced with an advanced Titanium Carbon Nitride (TiCN) coating.
Combining the excellent toughness and heat resistance of HSSE material with the superior surface hardness of TiCN coating, these machine taps deliver outstanding cutting performance, longer tool life, and reliable thread quality in demanding machining environments.
They are designed for CNC machining, automatic production lines, and professional industrial applications where productivity and tool reliability are critical.
Technical Data:
| Standard | DIN371/376 |
| Country of Origin | China |
| Material | HSS-G/HSS-E |
| Tolerance | ISO2(6H) |
| HRC | 61-66 |
| Surface | Vaprovized/PVD Coating |
| Flute Type | Spiral Point/Spiral Flute,35° |
| Cutting Direction | Right |
| Thread Angle | 60° |
| Square | DIN10 |
| Application | Internal thread cutting for through and blind holes |
Product Features
Premium HSSE Cobalt Steel Material
Compared with standard HSS taps, HSSE taps contain cobalt elements that improve:
· Higher hot hardness during high-speed cutting
· Better wear resistance
· Improved cutting edge strength
· Greater resistance to thermal stress
· Longer tool life in demanding applications
The HSSE substrate provides excellent performance when machining harder and more challenging materials.
TiCN Coating for Enhanced Performance
The TiCN (Titanium Carbon Nitride) coating creates a hard and wear-resistant surface layer on the cutting edges.
Advantages of TiCN coating:
· Increased surface hardness
· Reduced friction between tool and workpiece
· Improved resistance against abrasion
· Reduced tendency of built-up edge formation
· Extended tool service life
The combination of HSSE material and TiCN coating makes these taps suitable for high-efficiency machining and long production cycles.
DIN 371 & DIN 376 Standards
DIN 371 – Reinforced Shank Machine Taps
Designed for smaller thread sizes with a reinforced shank structure.
Features:
· Higher rigidity
· Excellent stability during tapping
· Suitable for CNC and general machine tapping applications
Recommended sizes: M3 – M10
DIN 376 – Reduced Shank Machine Taps
Designed for larger thread sizes with a reduced shank diameter.
Features:
· Suitable for larger thread production
· Compatible with standard tapping holders
· Ideal for CNC machining operations
Recommended sizes: M12 – M24
Available Specifications
Thread Standard
· Metric coarse thread: ISO Metric DIN 13
· Metric fine thread: ISO Metric Fine
Tolerance
· ISO 2 / 6H
Size Range
· M3 – M24
(Custom specifications available upon request)
Cutting Performance
Designed for CNC Machining
TiCN coated HSSE machine taps are recommended for:
· CNC machining centers
· Automatic tapping machines
· Batch production
· High-frequency tapping operations
The optimized combination of substrate and coating provides stable cutting performance and consistent thread accuracy.
Recommended Materials
Suitable for machining:
Workpiece Material | Performance |
Carbon Steel | Excellent |
Alloy Steel | Excellent |
Stainless Steel | Excellent |
Tool Steel | Good |
Cast Iron | Good |
Flute Design Options
Spiral Point Taps (Gun Taps)
Recommended for:
· Through holes
· High-speed production
· Efficient chip evacuation forward
Advantages:
· Lower cutting resistance
· Higher tapping efficiency
· Suitable for automatic machining

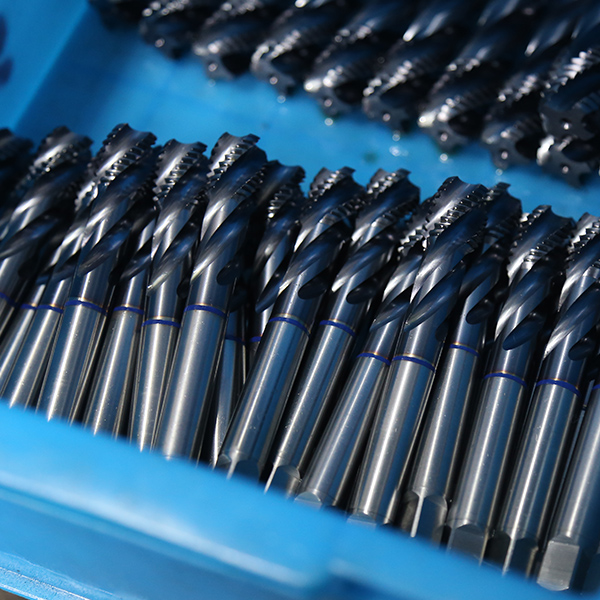

Spiral Flute Taps
Recommended for:
· Blind holes
· Deep thread applications
· Materials producing long chips
Advantages:
· Excellent chip removal capability
· Reduced risk of chip jamming
HSSE + TiCN Advantages
Feature | Benefit |
HSSE Cobalt Steel | High heat resistance and cutting strength |
TiCN Coating | Higher hardness and reduced friction |
Precision Ground Thread | Accurate and consistent thread profile |
DIN Standard Design | International compatibility |
Professional Grade | Suitable for demanding industrial applications |
Applications
Automotive Components
Aerospace Parts
Mechanical Engineering
Hydraulic Equipment
Precision Machinery
General Industrial Manufacturing
Why Choose Our TiCN Coated HSSE Machine Taps?
✔ Premium HSSE cobalt steel construction
✔ TiCN coating for extended service life
✔ Excellent performance on difficult materials
✔ Stable thread quality for CNC production
✔ Cost-effective solution for industrial users and distributors
Custom OEM Solutions Available
We support:
· Private label production
· Customized packaging
· Special thread specifications
· Different coating options
· Distributor cooperation
