Tap Guide for Hand Tap M3-12
When manually cutting threads, the verticality of the tap when it enters the hole directly affects the quality of thread and can even break the tap, and to remove the broken tap can be very costly. For this reason, special care should be taken when tapping and suitable tools should be used. The innovative solution from the GSR think tank: GSR Hand Tap Guides
The hand tap guides are suitable for:
Hand tap DIN 352
Short machine tap DIN 352
What are the advantages of GSR Tap Guide:
Easy handling
Plumb bob-correct cutting
Plumb for inclined plane or vertical drill hole
Automatic centering of the hand tap
Suitable for short gates (shape C)
Suitable for hand taps and cutting taps according to DIN 352

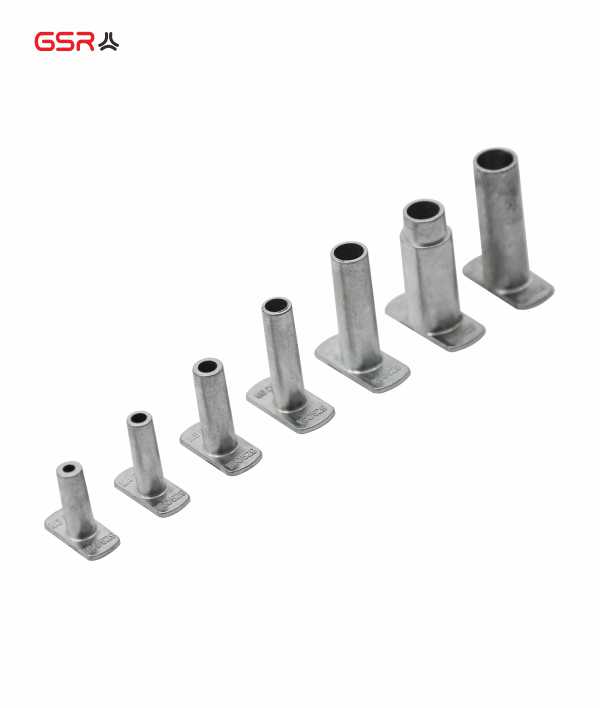

GSR HAND TAP GUIDES
The GSR hand tap guides enable a perpendicular first cut of the tap even with short-chamfered taps. This increases process reliability and avoids tilting of the tap and thus a waste. The GSR hand tap guides are made of high-quality die-cast zinc.
Technical Data:
| Material | Zinc |
| Size | M3-12 |

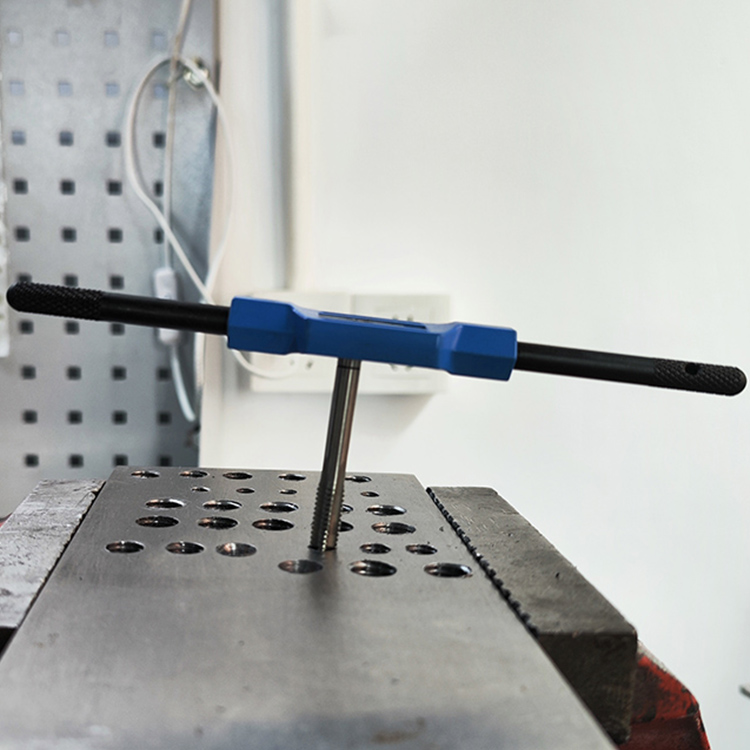

When you cut without tap guide

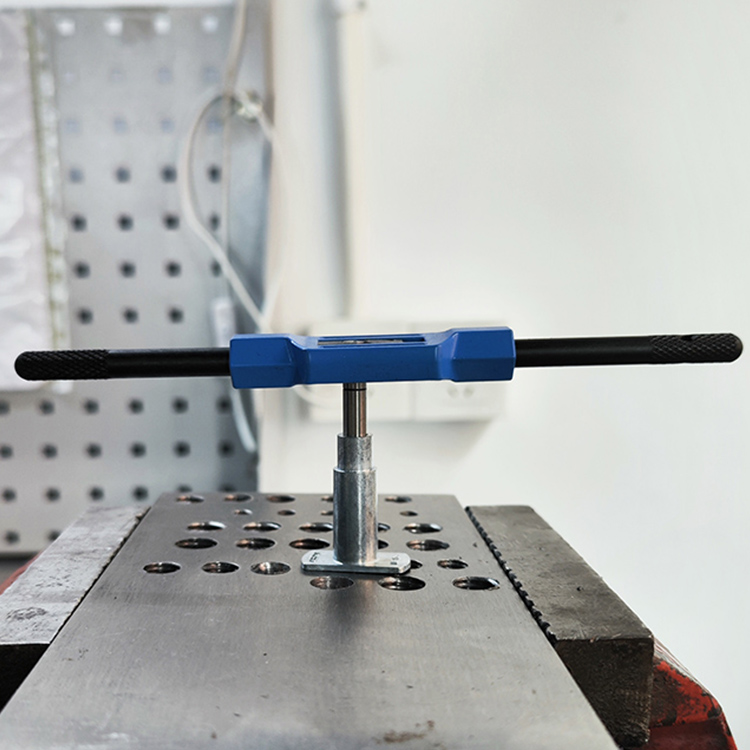

Using tap guide when start the manual tapping

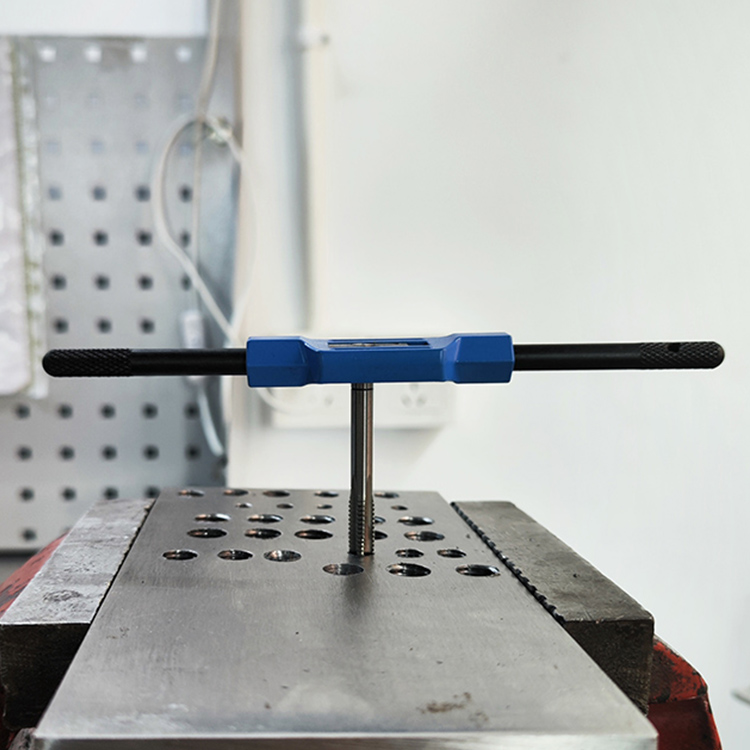

Cutting straightly
